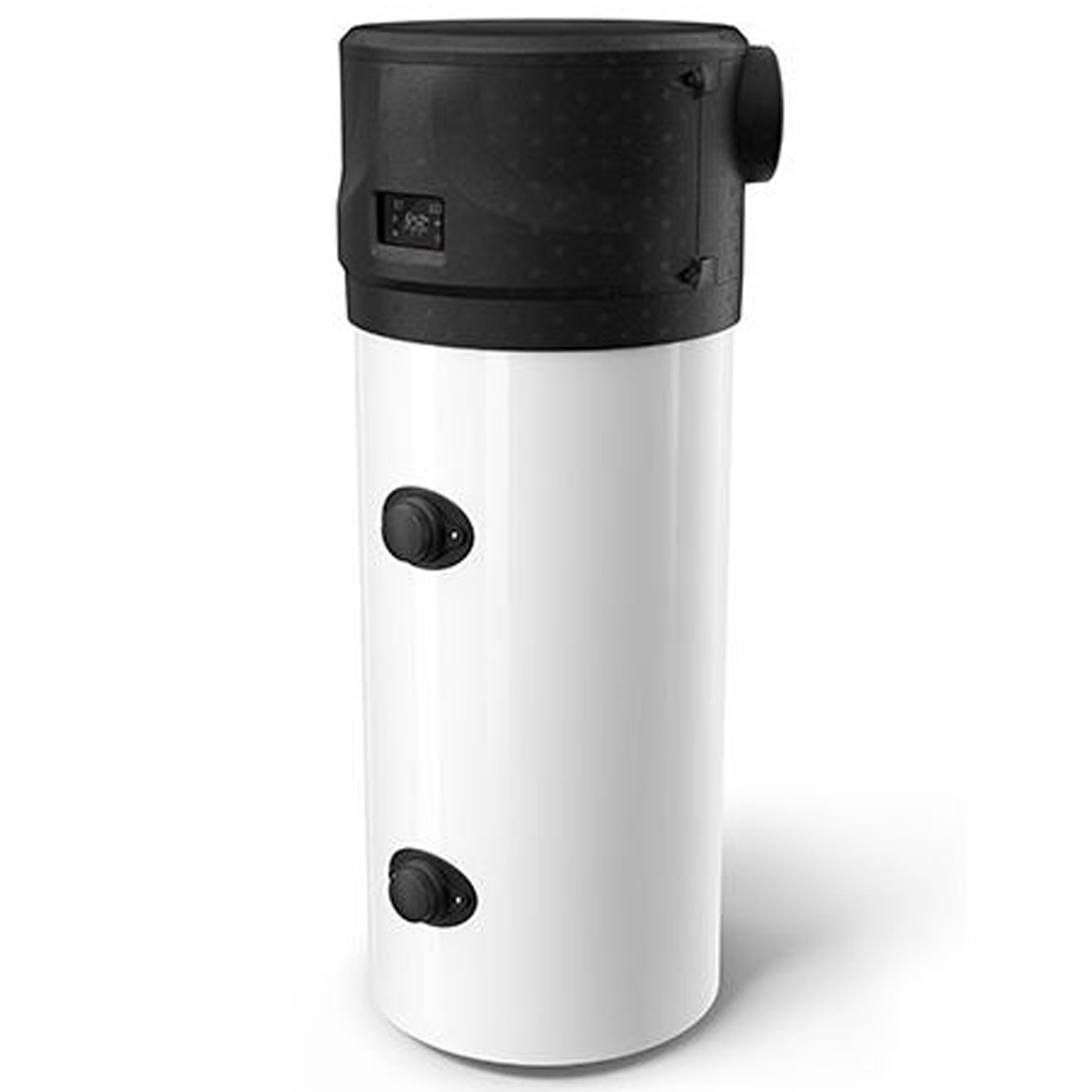

TESY AquaThermica Pro Air Source Heat Pump W/ Heat Exchanger

£1,999.00 GBP

~~£2,399.99 GBP~~ £1,999.00 GBP

Sale Sold out

Taxes included.

Capacity

: 251L Actual Capacity | A+ Rated | CoP 3.8

260L 200L

Capacity

251

Dimensions

H: 1911mm | Ø: 630mm

Hot Water Run Time

9h 37min

Description

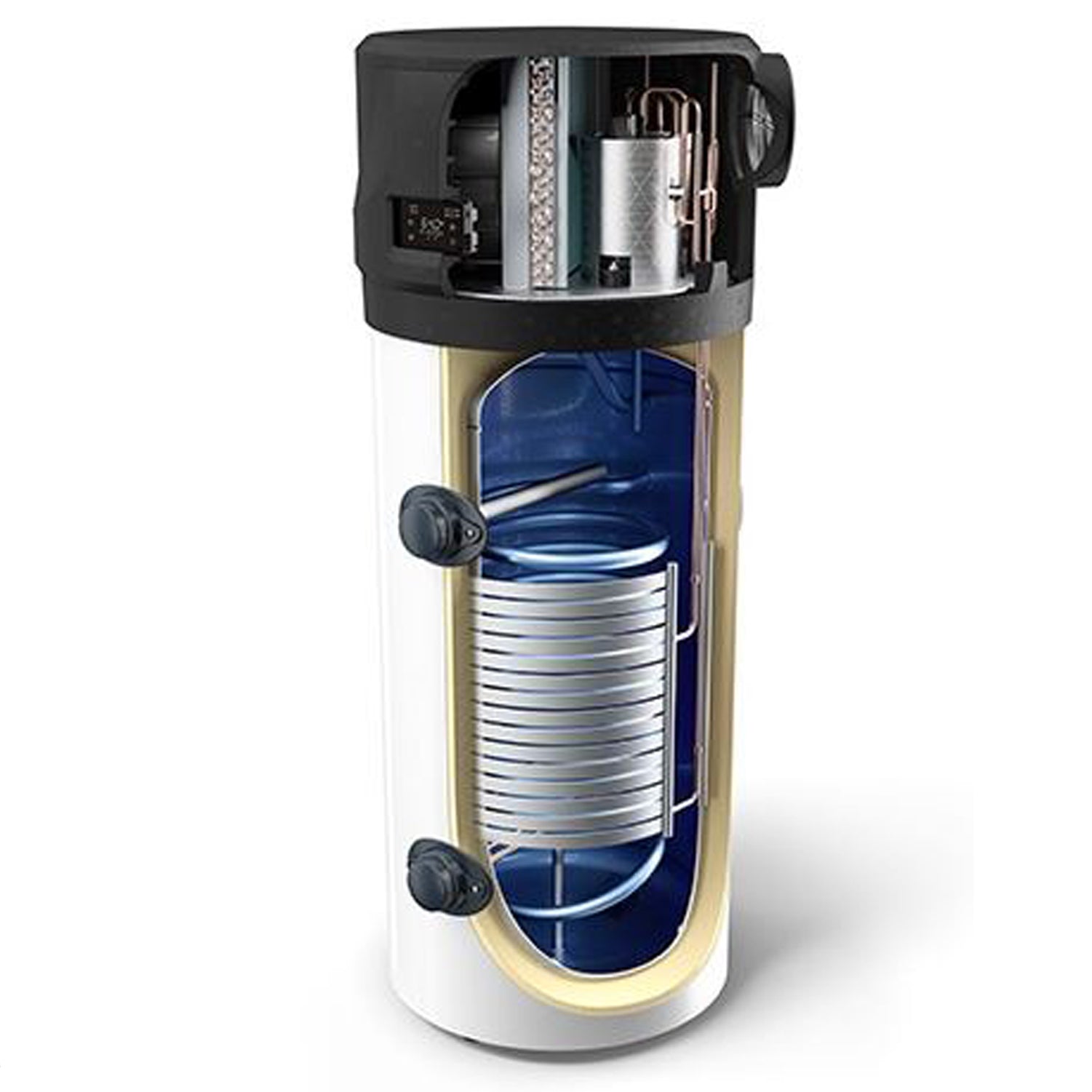

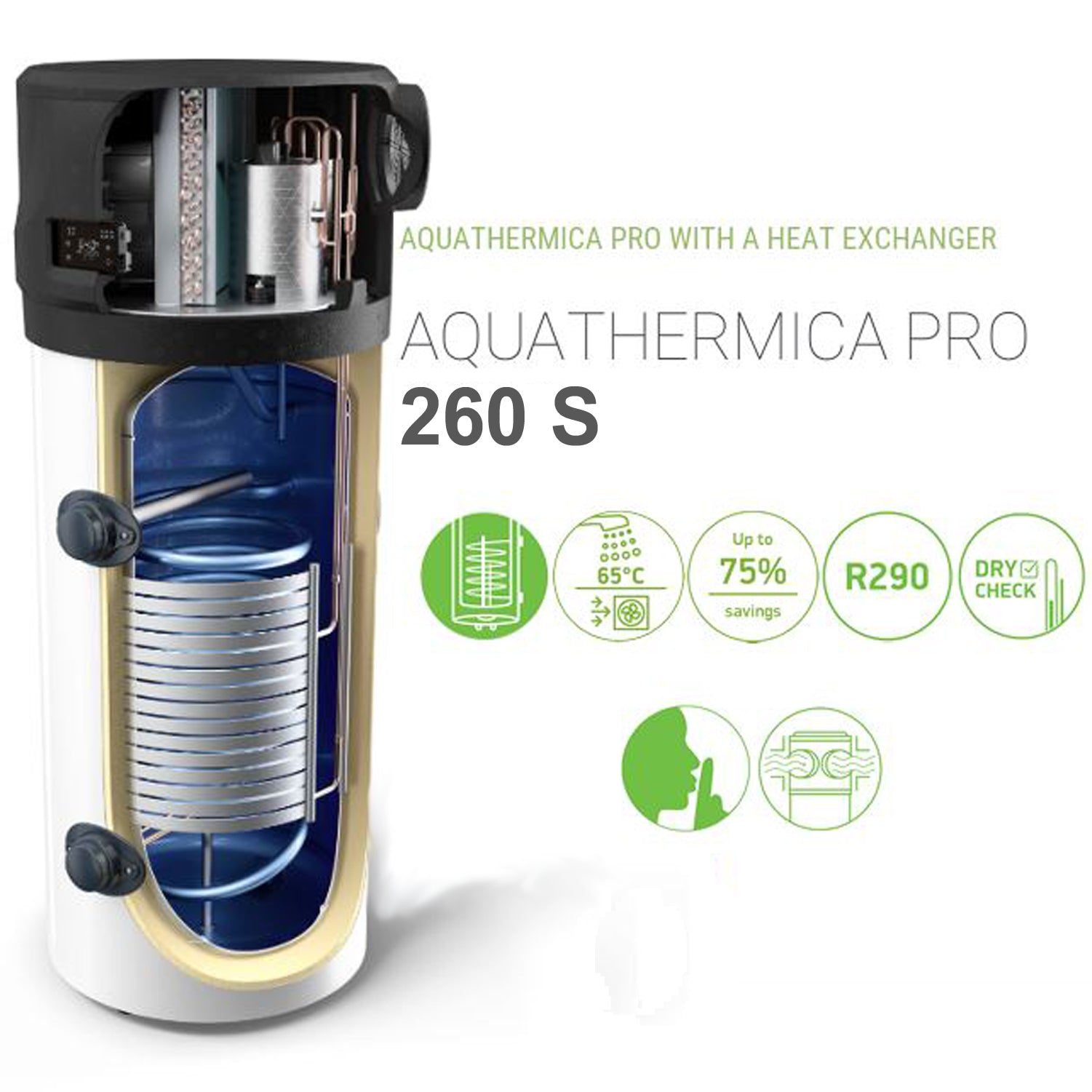

TESY AquaThermica Heat Pump Hot Water Cylinder | Heat Exchanger is a floor-standing, all-in-one air-to-water heat pump designed to produce efficient domestic hot water, with an internal sealed coil heat exchanger to allow connection to an additional heat source or a small underfloor/central heating circuit. It’s a strong option for larger properties that want lower running costs and more flexibility than a standard electric cylinder.

With an A+ energy class, the AquaThermica uses renewable heat from the air to reduce electricity consumption compared with conventional electric hot water cylinders. It can deliver domestic hot water temperatures up to 65°C on heat pump operation, with an integrated electric heating element to support faster heat-up and higher temperatures up to 75°C when required.

Control is simple via the programmable LCD touch panel with built-in diagnostics, and the unit includes practical protections such as an automatic anti-Legionella cycle and self-diagnosis. Installation requires 160mm intake and exhaust air hoses (not included) connected to the top of the appliance.

Installation & compliance
This unit must be installed by a qualified professional and in line with the manufacturer’s instructions.

Specifications

260L AquaThermica Pro – Technical Specification

TIN Code: 306267

Actual Capacity: 251 L

Energy Class: A+

CoP (DHW): 3.8

Maximum Operational Temperature: 75 °C

HP Maximum Settable Temperature: 65 °C

Maximum Working Pressure: 8 bar

Height: 1911 mm

Diameter: 630 mm

Transport Weight: 127.3 kg

Heating Time: 9h 37min

Declared Load Profile: XL

Electric Heating Element Power: 1.5 kW

HP Maximum Absorption: 0.47 + 1.5 (e-heater) = 1.970 kW

Maximum Current in HP: 2.5 + 6.5 (e-heater) = 9 A

Required Overload Protection: 16A T fuse / 16A automatic switch characteristic C

Heat Pump Air Intake Temperature Range (90% R.H.): -7 to 43 °C

Installation Site Temperature Range: -4 to 40 °C

Frequency: 50 Hz

Annual Electricity Consumption (average climate): 1160 kWh

Power Supply: 1/N/220–240 V

Compressor: Rotary

Compressor Protection: Thermal circuit breaker with automatic reset

Fan: Centrifugal

Nominal Air Capacity: 360 m³/h

Motor Protection: Internal thermal circuit breaker with automatic reset

Internal Protection: Single safety thermostat with manual reset on resistive element

Condenser: Wrapped externally, not in contact with water

Automatic Anti-Legionella Disinfection Cycle: Yes

Minimum Ceiling Clearance: 2000 mm

Cathodic Protection: Mg anode Ø 33 x 400 mm

Defrosting: Active with 4-way valve

Degree of Protection: IPX4

Refrigerant: R290

Refrigerant Charge: 150 g

Key Features & Benefits

Floor-standing all-in-one design — heat pump and cylinder in one unit
Available in 200L and 260L capacities
Internal sealed coil heat exchanger — connect to a secondary heat source or underfloor/central heating circuit
A+ energy efficiency rating
Maximum hot water temperature: 65°C (heat pump) / 75°C (with electric element)
CoP 3.8 — highly efficient air-to-water heat transfer
Refrigerant: R290 — natural refrigerant with very low GWP
Programmable LCD touch control panel with built-in diagnostics
Automatic anti-Legionella disinfection cycle
Requires 160mm diameter intake and exhaust air hoses (not included)
Self-diagnosis system for easy fault identification
