TESY AquaThermica Pro Heat Pump Hot Water Cylinder 260s | Heat Exchanger A+ Rated

TESY AquaThermica Pro Heat Pump Hot Water Cylinder 260s | Heat Exchanger A+ Rated

£1,599.99 GBP
£2,099.99 GBP £1,599.99 GBP
Sale Sold out
Taxes included.

Description

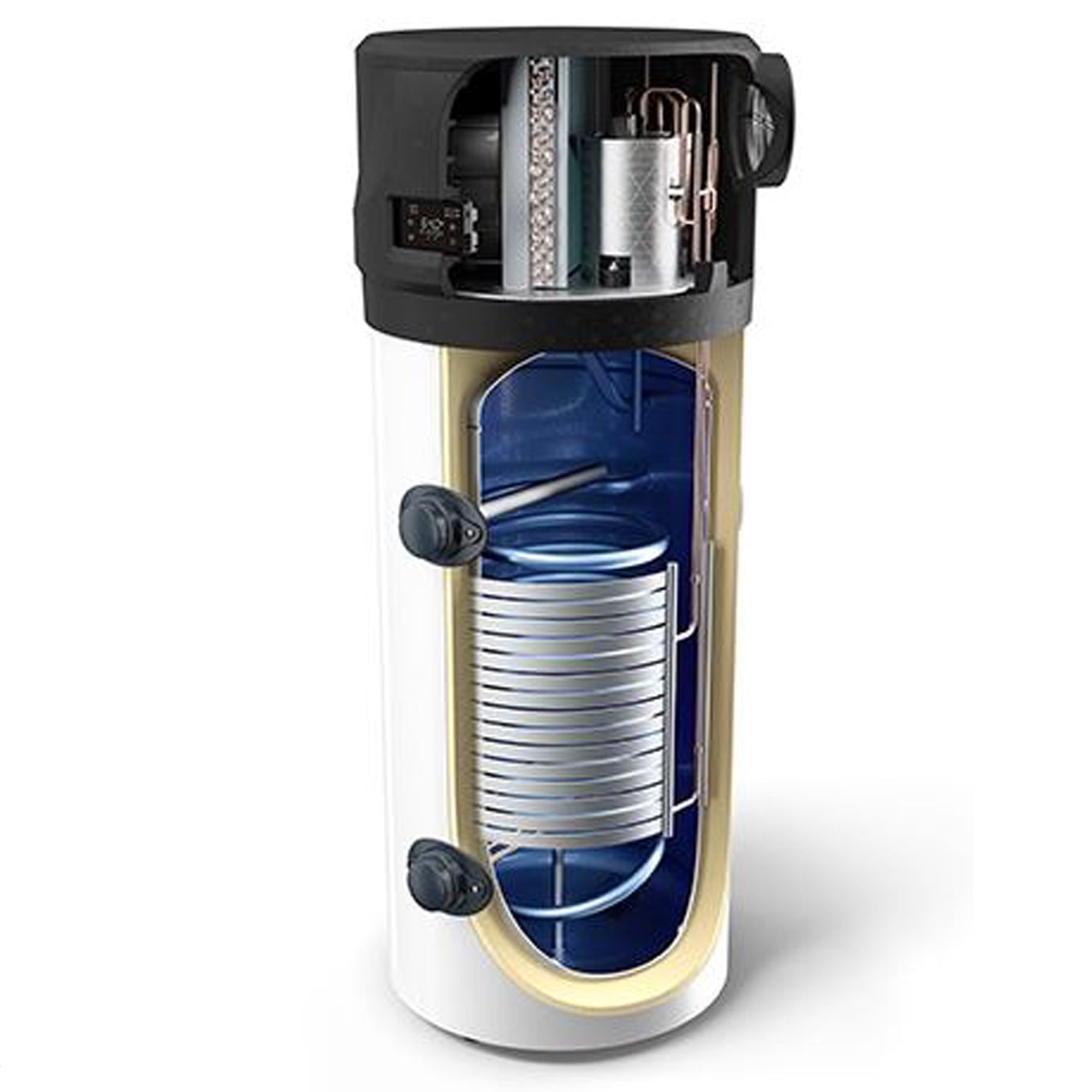

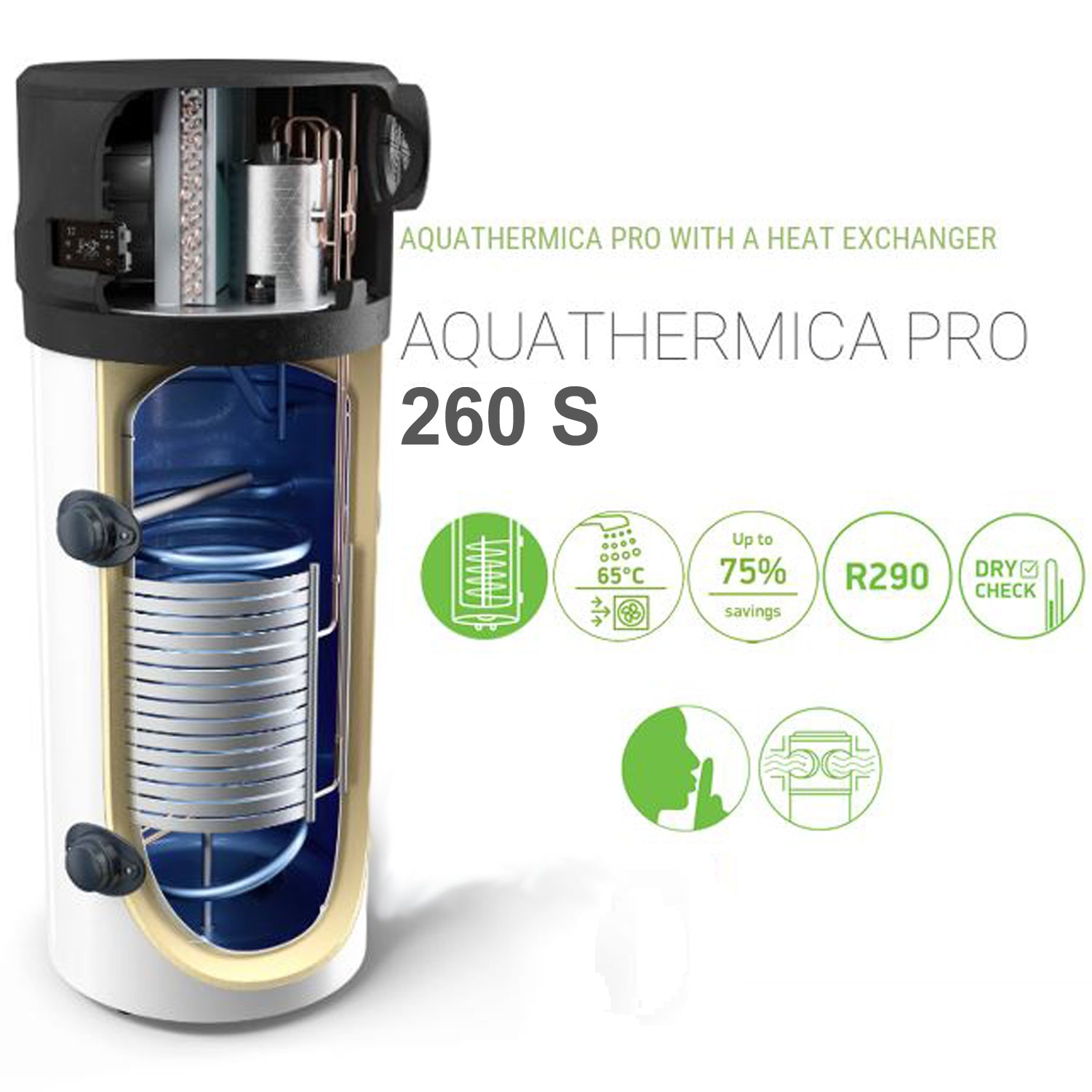

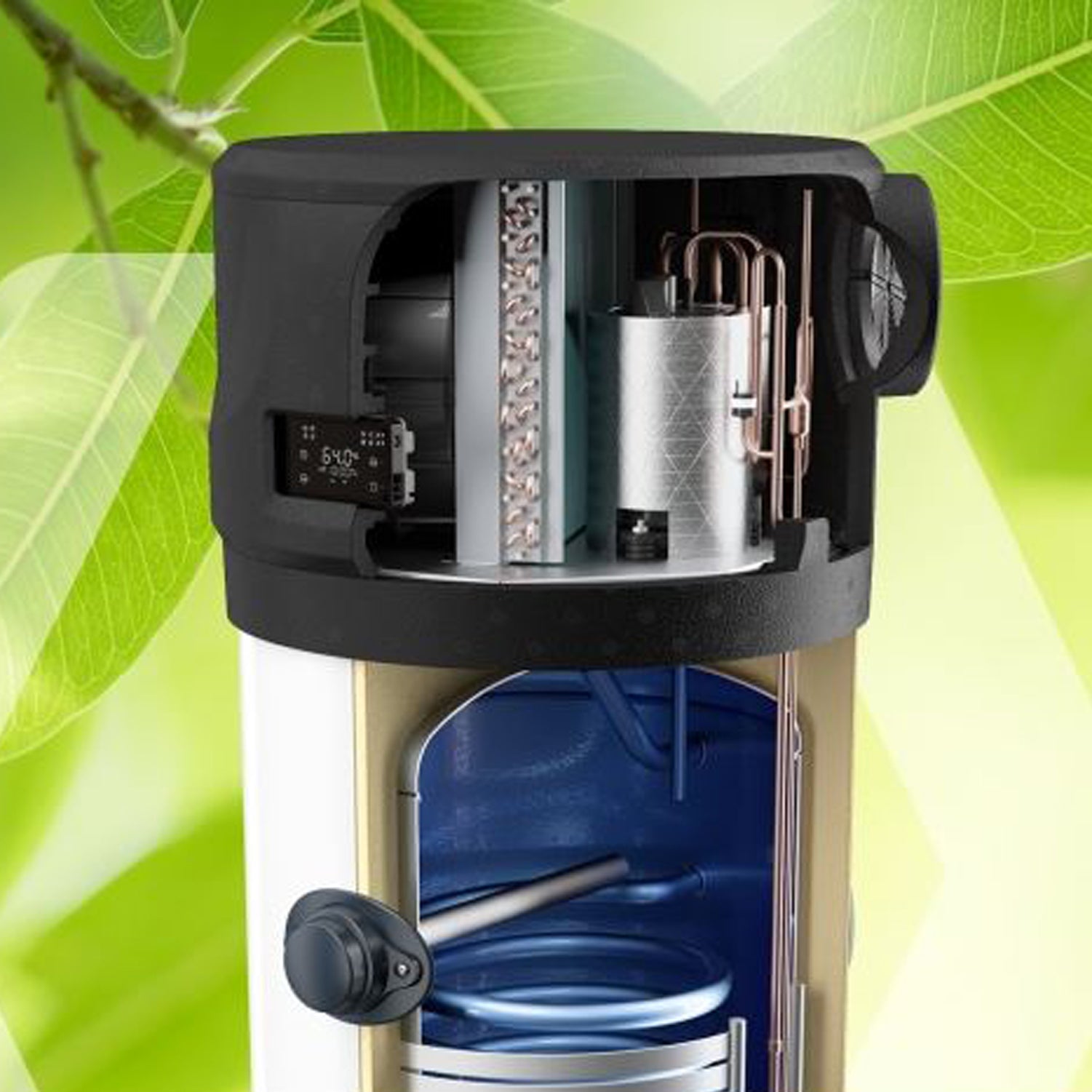

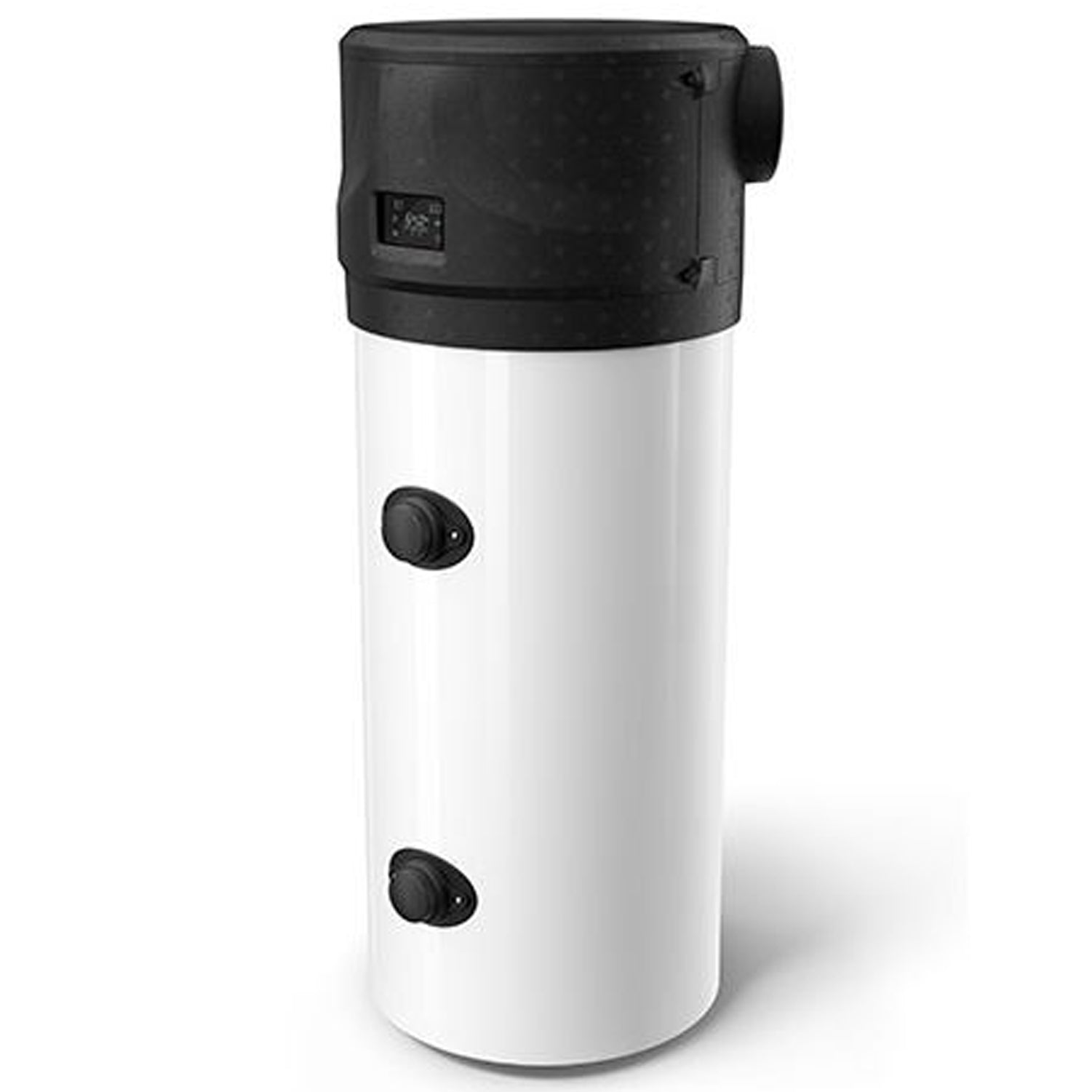

TESY AquaThermica Heat Pump Hot Water Cylinder 260s | Heat Exchanger is a floor-standing, all-in-one air-to-water heat pump designed to produce efficient domestic hot water, with an internal sealed coil heat exchanger to allow connection to an additional heat source or a small underfloor/central heating circuit. It’s a strong option for larger properties that want lower running costs and more flexibility than a standard electric cylinder.

With an A+ energy class, the AquaThermica uses renewable heat from the air to reduce electricity consumption compared with conventional electric hot water cylinders. It can deliver domestic hot water temperatures up to 65°C on heat pump operation, with an integrated electric heating element to support faster heat-up and higher temperatures up to 75°C when required.

Control is simple via the programmable LCD touch panel with built-in diagnostics, and the unit includes practical protections such as an automatic anti-Legionella cycle and self-diagnosis. Installation requires 160mm intake and exhaust air hoses (not included) connected to the top of the appliance.

Installation & compliance
This unit must be installed by a qualified professional and in line with the manufacturer’s instructions.

Important: 160mm intake and exhaust air hoses are required and not included.

Specifications

  • Range size: 260L

  • Capacity: 251L

  • Energy class: A+

  • CoP (DHW): 3.8

  • Declared load profile: XL

  • Maximum working pressure: 8 bar

  • Maximum operational temperature: 75°C

  • HP maximum settable temperature: 65°C

  • Electric heating element power: 1.5kW

  • HP maximum absorption: 0.47kW + 1.5kW (e-heater) = 1.970kW

  • Annual electricity consumption (average climate): 1160 kWh

  • Power supply: 1/N/220–240V, 50 Hz (wired via fused spur)

  • Heating time: 9:37 h:min

  • Refrigerant: R290

  • Refrigerant charge: 150 g

  • Nominal air capacity: 360 m³/h

  • Degree of protection: IPX4

  • Dimensions: height 1911mm, diameter 630mm

  • Transport weight: 127.3kg

  • Min. ÷ max heat pump air intake temperature: -7°C to +43°C

  • Min. ÷ max installation site temperature: -4°C to +40°C

  • Minimum room height: 2000mm

  • Required overload protection: 16A T fuse / 16A automatic switch characteristic C

  • Cathodic protection: Mg anode Ø 33 × 400mm

  • Automatic anti-Legionella disinfection cycle: Yes

Key Features & Benefits

  • 260L range size: high-capacity solution for larger hot water demand

  • Internal coil heat exchanger: connect to an additional heat source or small UFH/heating circuit

  • A+ energy class: designed for high efficiency and lower running costs

  • R290 refrigerant (propane): environmentally friendly refrigerant choice

  • Up to 65°C DHW on heat pump: high temperature output on heat pump operation

  • Electric heating element (1.5kW): supports faster heating and up to 75°C max operational temperature

  • Quiet operation: 34 dB(A) at 1 metre

  • Programmable LCD touch controls: user-friendly control with built-in diagnostics

  • Automatic anti-Legionella cycle: built-in disinfection function

  • DRY CHECK anode access: check magnesium anode without draining the cylinder

  • Ducting required: 160mm intake/exhaust hoses (not included)
